| General information | |
|---|---|
| Launched | 1982 |
| Discontinued | 1995 |
| Common manufacturer(s) |
|
| Performance | |
| Max. CPU clock rate | 1.79 MHz |
| Architecture and classification | |
| Min. feature size | 6 μm |
| Instruction set | MOS 6502 |
| Physical specifications | |
| Cores |
|
| Socket(s) |
|

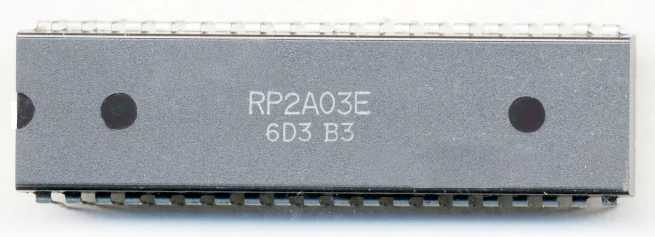

RP2A03E
The Ricoh 2A03 or RP2A03 (NTSC version) / Ricoh 2A07 or RP2A07 (PAL version) is an 8-bit microprocessor manufactured by Ricoh for the Nintendo Entertainment System video game console. It contained a second sourced MOS Technology 6502 core, modified to disable the 6502's binary-coded decimal mode, with 22 memory-mapped I/O registers that controlled an APU, rudimentary DMA, and game controller polling.[1] It was also used as a sound chip and secondary CPU by Nintendo's arcade games Punch-Out!! and Donkey Kong 3.
Regional variations[]

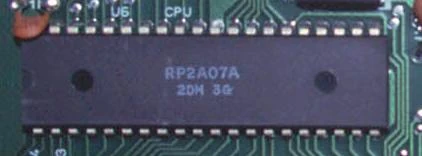

PAL versions of the NES (sold in Europe, Asia, and Australia) used the Ricoh 2A07 or RP2A07 processor, which was identical to the 2A03 except for a different clock divider and the 50 Hz vertical refresh rate used in the PAL television standard, with the exception of the 16 hard-coded sampling rates for the Delta modulation-encoded sample playback unit. The changes were made in order for sampled sounds to maintain the original pitch of the RP2A03 with the new clock divider.
See also[]
- Nintendo Entertainment System technical specifications
References[]
- ↑ Taylor, Brad (April 23, 2004). "2A03 technical reference". NesDev.com. Archived from the original on October 17, 2018. Retrieved June 6, 2008. Unknown parameter
|dead-url=ignored (|url-status=suggested) (help)<templatestyles src="Module:Citation/CS1/styles.css"></templatestyles>
